Mist Machine 50m 60m Intelligent Ultra-fine Mist Cannon Sprayer Pump Agriculture Mobile ― $1,900 CE

fog cannon uses high pressure pump and micro atomizing nozzle to atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the water mist is larger with the help of the rotary mechani…

Calm range:50MM Color:Blue Rotation angle:0-350°

Share With:

Youtube Facebook Instagram Twitter

The main purpose of the fog cannon machine is to reduce dust. The device sprays tiny mist particles with a diameter similar to that of the dust and directly contacts the dust in the air, so that the dust is wet and condenses with the surrounding dust through adsorption. The effect of gravity makes the dust sink, so as to achieve the effect of dust suppression.

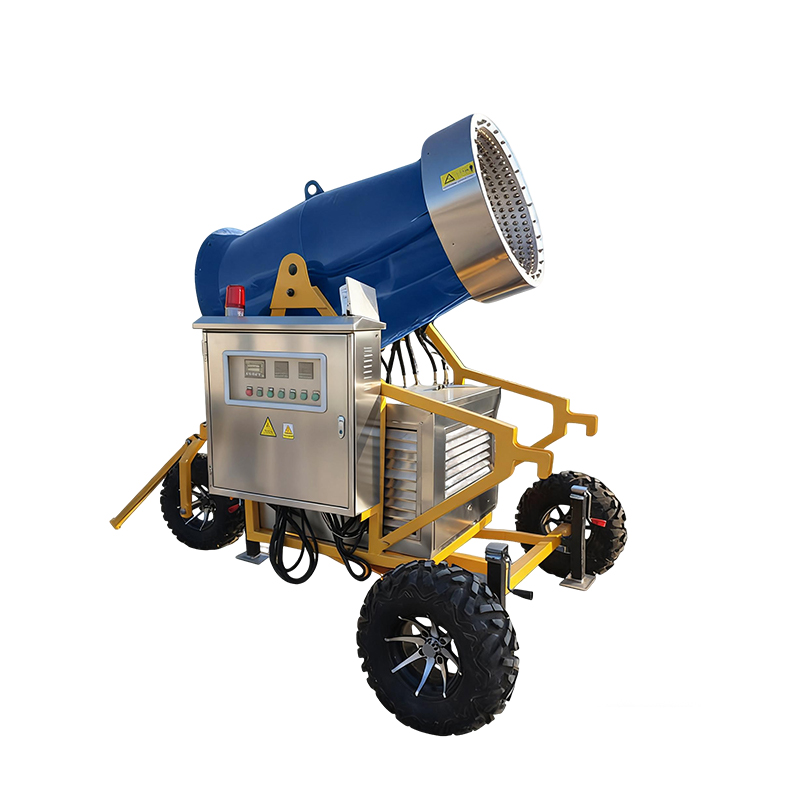

50 m four-wheel trailer type fog cannon
According to the principle of air delivery, the fog cannon uses high pressure pump and micro atomizing nozzle to
atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the water mist is larger with the help of the rotary mechanism.
Proll-cart design, light and compact, easy to move, suitable for all kinds of environments.
Tricycle trailer design, more convenient to move.
FEATURES AT A GLANCE
Baking paint finishing process
High strength slewing support
Local, remote control, PLC automatic control
Remote control
Stainless steel water ring and nozzle
Motor overload, under-voltage and default phase protection function
Zhenton fog cannons have a long reach and a long range and can suppress dust by producing a column of mist that leaves the 'cannon' at high speed and that can reach a range of 50 meters.When the mist or spray reaches the dust it can 'knock down' up to 90% of the dust. This type of dust suppression is best suited to building demolition, construction sites, quarries and mines, foundries, steel and slag facilities, waste transfer stations, and recycling plants.
According to the principle of air delivery, the  fog cannon uses high pressure pump and micro atomizing nozzle to atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the water mist is larger with the help of the rotary mechanism.



Farm equipment dust suppression water mist machine 50m 60m Intelligent ultra-fine mist cannon sprayer

According to the principle of air delivery, the water mist cannon uses high pressure pump and micro atomizing nozzle to
atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the water mist is larger with the help of the rotary mechanism.
Proll-cart design, light and compact, easy to move, suitable for all kinds of environments.
Tricycle trailer design, more convenient to move.
FEATURES AT A GLANCE
Baking paint finishing process
High strength slewing support
Local, remote control, PLC automatic control
Remote control
Stainless steel water ring and nozzle
Motor overload, under-voltage and default phase protection function


MODEl Static wind
range (m)
Fan power
(Kw)
Pump power
(Kw)
Total power
(Kw)
Pitch angle Rotation angle sprinkler Noise at 20
meters (dB)
Weight(kg)
Split bax Standard certer nozzle
ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640
ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
