Manual fog cannon and semi-automatic automatic how to distinguish? This is mainly from the fog cannon equipment up and down and rotating angle of the manipulation of the way to see, today Zheng Tong fog cannon manufacturers from a variety of perspectives for you to carry out a detailed explanation!
Manual fog cannon machine and semi-automatic automatic difference lies in the fog cannon machine barrel rotation is different, manual fog cannon machine barrel up and down the left and right movement, all rely on manpower to achieve, such fog cannon machine is commonly used on the construction site of the ordinary type of engineering fog cannon machine; semi-automatic fog cannon machine barrel up and down by manpower to achieve the left and right movement of the barrel is automatically realized, this fog cannon machine refers to the construction site above the use of modified Engineering fog cannon, in the rotating part of the wind barrel with gears and rotating motor; automatic fog cannon wind barrel up and down, left and right movement is automatically completed, this fog cannon refers to industrial-grade fog cannon.
Manual fog cannon machine, small size, small weight, small range, in general, manual fog cannon machine bottom will have four arbitrary steering wheels. The horizontal rotation of the barrel of the manual fog cannon machine can be realized in two ways, the first way is to let the whole gun body rotate and move up, the second way is to remove the rotating body fixing bolts, move the barrel to drive the rotating body, and then install the fixing bolts after moving to the right position. Manual fog cannon machine in addition to the need for horizontal rotation, but also need to adjust the pitch angle in the vertical direction, then you need to turn the pitch angle adjustment lever. It can be seen that the use of manual fog cannon machine is very time-consuming and laborious. Semi-automatic fog cannon, the use of remote control can be remotely controlled in the horizontal direction of the left and right rotation of the wind turbine pitch angle to determine the case.

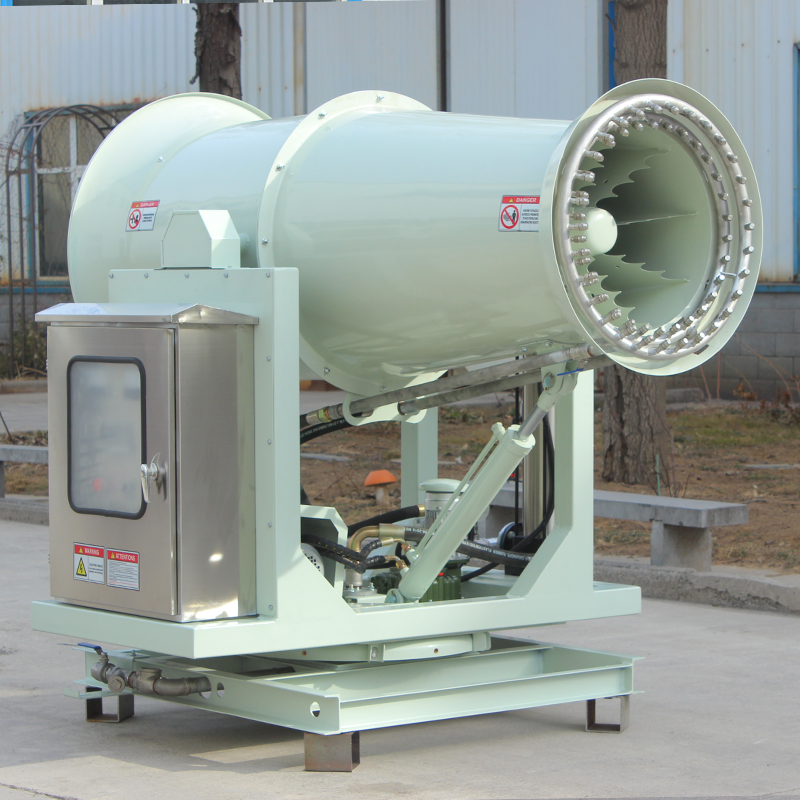

Unlike the clumsy operation of the manual fog cannon, the horizontal and vertical rotation of the automatic fog cannon is very flexible, and the operator only needs to give the corresponding command signal to realize it, which is time-saving and efficient. The horizontal rotation of the automatic fog cannon is realized by the horizontal rotation structure driven by the rotary motor, the horizontal rotation angle is adjustable, the maximum angle is plus or minus 180 degrees, which can realize the horizontal direction of 360 degrees rotation. Unlike the horizontal direction rotation, the vertical direction angle change of the automatic fog cannon machine is realized by the hydraulic pump station. Of course, the horizontal direction of rotation can also be realized using hydraulic pressure. Industrial-grade automatic fog cannon machine in a static wind state range is generally more than 40 meters, so the weight of the entire gun body is also much greater than the manual fog cannon machine, if the use of manpower to adjust the wind barrel up and down, left and right rotations, obviously unscientific, so there is no semi-automatic industrial-grade fog cannon machine, either a small manual fog cannon machine, or a large industrial-grade automatic fog cannon machine.
The automatic fog cannon machine's wind barrel rotates up and down, left and right, is controlled by giving the corresponding command signals, and these command signals can be realized by means of buttons, and there are such buttons designed on the distribution box on the side of the cannon. The staff can realize all the operations of the fog cannon machine by pressing these buttons. But this way has a disadvantage, that is, the staff must stand next to the distribution box of the fog gun machine. In order to solve this determination, the technicians designed a remote control that can be controlled remotely. The remote control distance of this remote control is 100 meters, within the range of 100 meters, you can realize the control of the fog cannon machine, greatly facilitating the use of the fog cannon machine. In addition to this remote control, the technicians have also developed an intelligent fog gun machine control system, which can be installed on both PC and cell phone. Intelligent fog cannon machine control system in the case of networking, not subject to the limitations of distance, you can control all the fog cannon machine within the access network. For example, a group headquartered in Shanghai, its subsidiaries throughout the country, the subsidiary fog cannon are registered in the intelligent fog cannon control system into the network; at this time, in the group headquarters of the computer, you can control the national subsidiaries into the network of all the fog cannon. In the intelligent fog cannon control system, you can visualize the geographical distribution of all fog cannons, online status and other information.
Intelligent fog cannon control system can also be linked with the environment detector, according to the data of the environment detector, automatically control the operation of the fog cannon, so as to achieve the true meaning of unmanned operation.
The above is about the manual fog cannon machine and semi-automatic automatic difference between some of the summarized content, I hope it can help you. This site for the content of this article, will be updated from time to time to add, so that the difference between manual fog cannon and semi-automatic automatic content more comprehensive, remember to collect this site for your convenience. Zheng Tong fog cannon manufacturers are specialized in the design, production, sales, installation and after-sales service of fog cannon equipment. We have a professional team to customize the fog cannon machine and supporting products according to the needs of customers.
