What are the characteristics of the electric actuator and hydraulic cylinder of the fog cannon machine respectively?

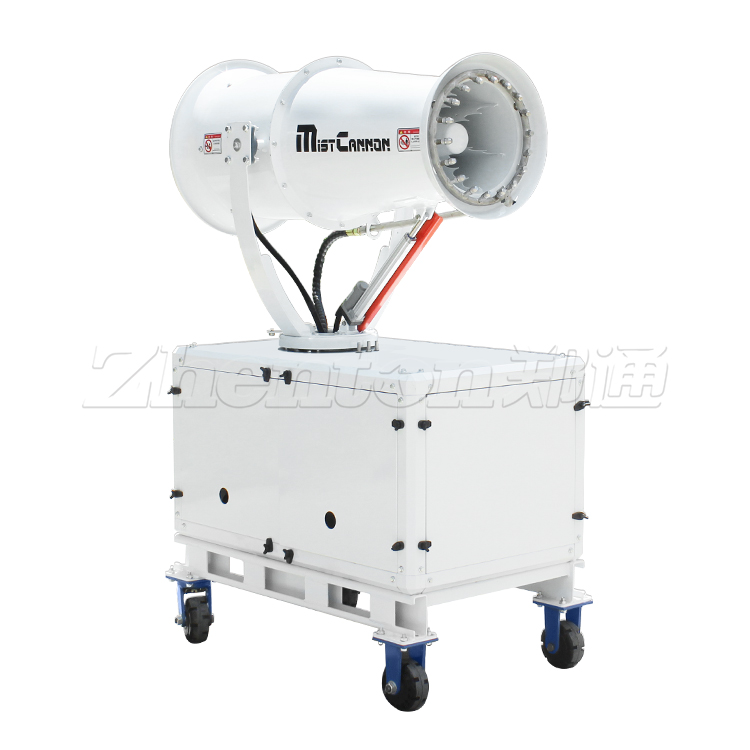

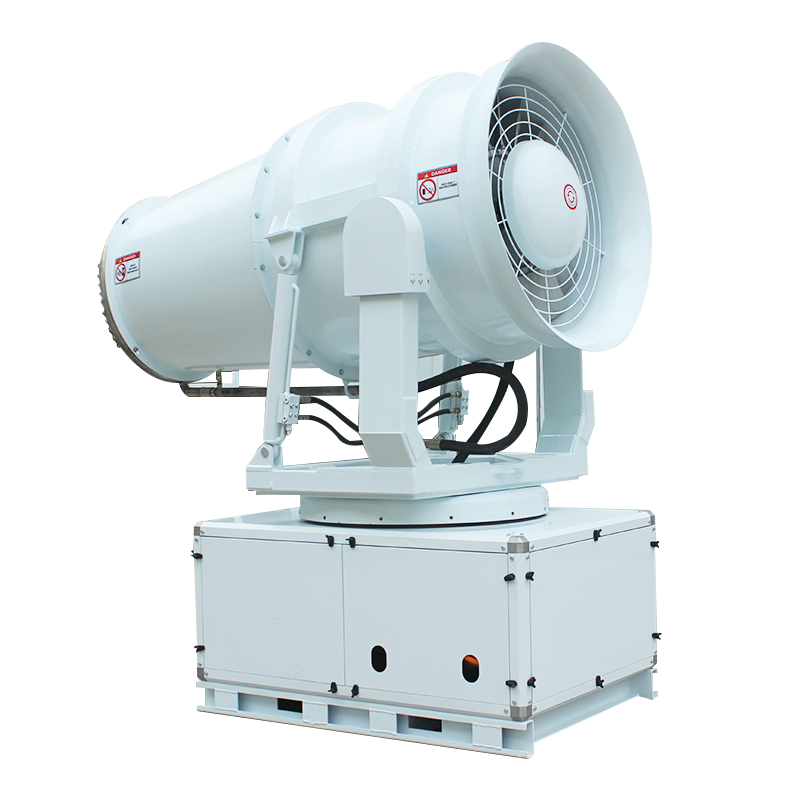

Electric actuator/hydraulic cylinder is one of the important components of the fog cannon machine, mainly controlling the pitching action of the fog cannon machine equipment. The difference is that the electric actuator relies on the motor as the power to control the pitching action of the fog cannon, and it is recommended to be used for equipment with a range of 40 meters or less; while the hydraulic cylinder relies on the movement of hydraulic oil to realize the manipulation of the pitching action of the fog cannon equipment, and it can be used for equipment with a longer range.

The electric actuator of fog cannon machine is mainly composed of motor, actuator and control device and other institutions. Novel and exquisite design, small size and high precision, smooth synchronization, good self-locking performance, direct drive of the motor, no need for additional pumping station for energy supply, low cost, reduce maintenance and repair costs.

Lifting actuator does not move (electric actuator):

1. The motor is not energized, check whether the incoming wiring and voltage are normal;

2. The load is too large, more than the rated thrust, check whether there are other loads on the fan;

3. Transformer is damaged;

4. The actuator has reached the maximum stroke;

5. Water or foreign matter inside the push rod.

The hydraulic cylinder of the fog cannon machine with hydraulic lock hydraulic station and bipolar cylinder composition, the use of two-stage sleeve structure, small length, long stroke, with a simple structure, good shock absorption, smooth and reliable operation, not easy to damage, easy maintenance, durable features.

Lifting push rod does not move (cylinder):

1. Check the reversing valve and confirm the cylinder pressure;

2. Check the oil pump station hydraulic oil oil volume;

3. Check whether the motor of the oil pump station operates normally and whether the solenoid valve works normally;

4. Check whether the fan additional loads, support shaft bearings are damaged;

5. Fog cannon machine cylinder internal or hydraulic oil there are foreign objects blocking the pipeline.
