User guide and operation manual of China fog cannon machine

Introduce:

As a new type of environmental protection equipment, the range of the fog cannon machine is between 20-150 meters, and you can choose the equipment with different range distances and the control system according to your needs. It can play the role of dust reduction for some dusty places, and also has the functions of cooling, killing and epidemic prevention, which has a great role in protecting the environment.

Application fields:

1.Agricultural field

Crop irrigation: in arid or semi-arid areas, the fog cannon machine can provide crops with an even supply of water and promote crop growth.

Pest control: by spraying pesticides, fog cannon machine can effectively control and prevent the occurrence of crop pests and diseases.

Fertilizer operation: Using fog cannon machine for foliar spraying can improve the utilization rate of fertilizer and reduce environmental pollution.

Greenhouse cooling: In the high temperature season, fog cannon machine can be used for cooling and humidifying inside the greenhouse to improve the growing environment of crops.

Soil improvement: by spraying specific solutions, fog cannon machine can help improve soil structure and increase soil fertility.

2.Industrial field

Mining Dust Removal: In the process of ore mining, fog cannon machine is used to control dust, improve the working environment and protect workers' health.

Factory cooling: In the hot summer, fog cannon machine can be used to cool down the factory workshop and improve the working efficiency of the staff.

Dust reduction in garbage disposal site: In the process of garbage disposal and landfill, fog cannon machine is used to control the spread of bad odor and dust.

Construction site dust suppression: In the construction process, fog cannon machine is used to suppress dust and reduce the impact on the surrounding environment.

Material yard dust suppression: For stacked materials, such as coal, ore, etc., fog cannon machine can effectively prevent weathering and dust.

3.Environmental protection field

Urban greening irrigation: fog cannon machine can be used for irrigation of urban parks and street green belts to save water.

Air purification: in areas with poor air quality, fog cannon machine can reduce suspended particles in the air by spraying water mist.

Forest fire prevention: During the dry season, fog cannon machines can be used for wet treatment at the edge of the forest to reduce the risk of fire.

Road cleaning: fog cannon machines can be used for urban road cleaning to remove road dust and dirt.

Water treatment: In lakes, rivers and other water bodies, fog cannon machines can be used to spray microbial agents to promote water purification.

4.Other fields

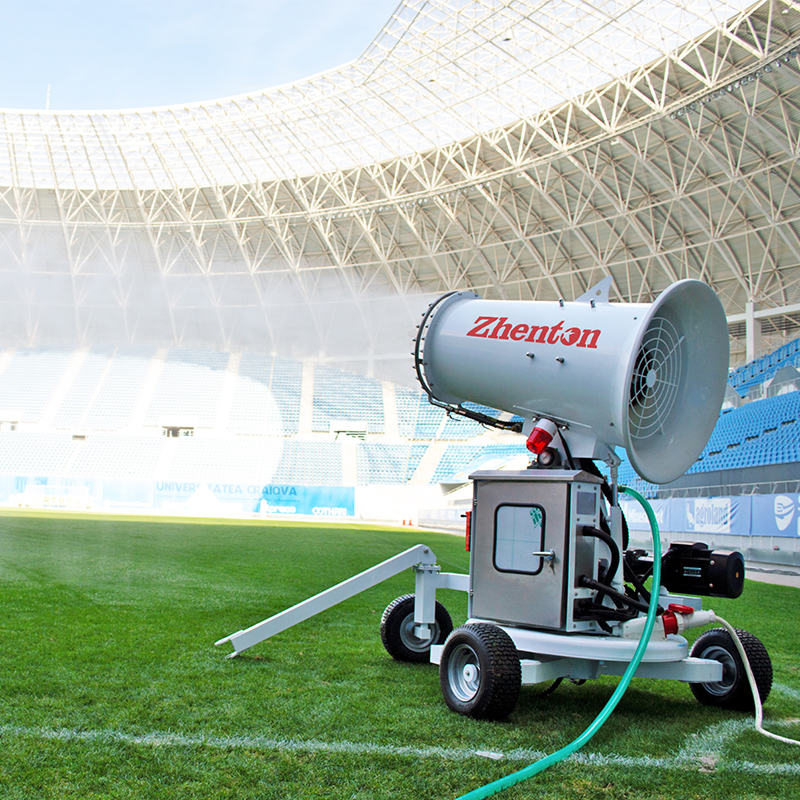

Cooling of large-scale activities: In outdoor music festivals, sports events and other large-scale activities, fog cannon machine can be used for cooling and humidification of the audience area.

Tourist attractions landscaping: in tourist attractions, fog cannon machine can be used for artificial fog to increase the landscape effect.

Farm disinfection: In the farm, the fog cannon machine can be used to disinfect the site and equipment to prevent the spread of disease.

Warehousing and logistics center cooling: in large warehousing and logistics center, fog cannon machine can be used for warehouse cooling and humidification, to protect the quality of stored goods.

Airport runway de-icing: in cold areas, fog cannon machine can be used for airport runway de-icing operations to ensure the normal take-off and landing of flights.

Category:

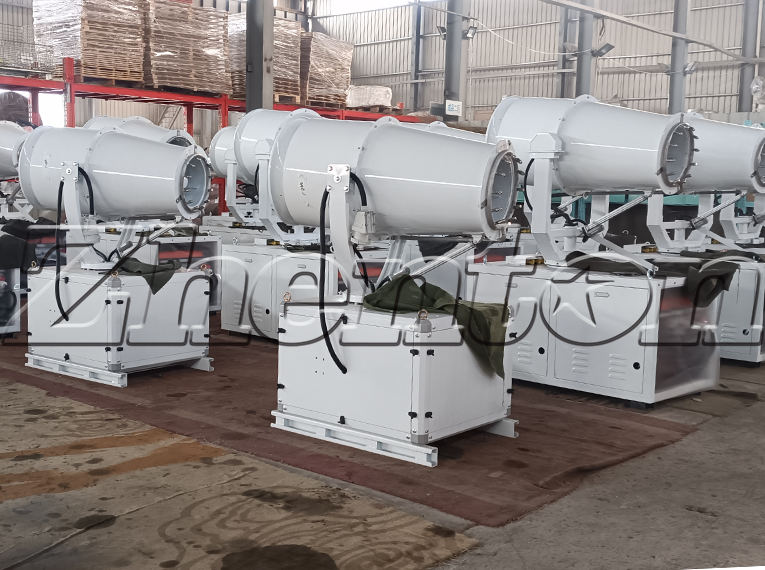

Split-type, fixed-type, box-type/vehicle-mounted, mobile/hand-push-type.

Composition:

It is mainly composed of fan device, pitching mechanism, slewing mechanism, base, water supply system and electrical control system.

1. Fan device: the fan device is one of the core components of the fog cannon machine, which is responsible for spraying the atomized water mist through the high-speed airflow to achieve the purpose of dust removal and cooling. The blades of the fan are usually made of corrosion-resistant aluminum alloy and are dynamically balanced to ensure its stability and durability.

2. Pitching mechanism: The pitching mechanism allows the nozzle of the fog cannon machine to be adjusted vertically to suit different operating heights and angles. This mechanism usually uses stainless steel electric actuator, the length of the actuator is not less than 40cm, to ensure the flexibility and accuracy of the adjustment.

3. Slewing mechanism: the slewing mechanism enables the spray nozzle of the fog cannon machine to rotate 360 degrees in the horizontal direction, thus realizing all-round coverage. This function is especially important for coal mines, factories, power plants and other large areas, which can effectively improve the dust removal efficiency.

4. Base: the base provides solid support for the fog cannon machine to ensure the stability of the machine during operation. The design of the base usually takes into account the mobility of the equipment and ease of installation to adapt to different working environments.

5. Water supply system: the water supply system is responsible for providing a stable water source to the fog cannon machine, including water filtration, water pressure regulation and other functions, to ensure that the water quality meets the spraying requirements, to prevent the nozzle from clogging, affecting the spraying effect.

6. Electrical control system: the electrical control system is the brain of the fog cannon machine, responsible for coordinating the work of various components, including the speed control of the fan, the precise adjustment of the pitch and rotary mechanism. Modern fog cannon machine is usually equipped with intelligent control system, which can realize remote operation and monitoring.

Working Principle:

There is a high-pressure pump inside the fog cannon machine that can raise the water pressure to dozens or even hundreds of atmospheric pressure. When the high-pressure water passes through the nozzle, due to the sudden decrease in pressure, the water will quickly atomize into tiny water droplets. These droplets are usually less than 100 microns in diameter and can be effectively suspended in the air to form a mist. At the same time will be equipped with a fan or blower, will be in the water atomization, through the high-speed airflow will be blown to a wider range of water mist, so that the equipment can be in a larger area uniformly spray water mist, the sprayed water mist and the suspended dust in the air, such as collision, adsorption, gravity under the effect of settlement, so as to achieve the purpose of dust reduction.

User's guide/operation manual:

1. Preparation before operation

Professional training: the operator needs to be professionally trained and familiar with the use of the fog cannon machine and the operation steps.

Protective equipment: the operator must wear appropriate protective equipment, such as safety helmet, protective mask, protective clothing, etc..

Check the power supply: Make sure the power supply of the fog cannon machine is normal, connect the water pipeline, and check whether the power line is connected and normal.

2.Starting Steps

Check the equipment: Before starting the fog cannon machine, make sure the equipment is in the stop state, and connect the water source.

Start the machine: Turn on the main power switch and start the fog cannon machine according to the steps in the manual.

Adjust the settings: according to the actual need, adjust the spray angle and spray volume of the fog cannon machine, choose the appropriate working mode.

3. Precautions in use

Avoid dangerous areas: During operation, observe the surrounding environment at any time to make sure that there are no people or animals in the spraying range.

Pay attention to the change of wind direction: when used outdoors, pay attention to the environmental wind direction to avoid the spray being blown away by the wind, affecting the cleaning effect.

4.Maintenance

Regular cleaning: Clean the nozzle and filter regularly to keep the nozzle and filter clean to ensure the spray effect.

Electrical system check: Check the electrical system regularly to ensure that the cable is well connected and the power supply is normal to avoid malfunction.

Storage Note: When not in use, the equipment should be stored in a ventilated and dry place to avoid moisture or rust.

To summarize, the proper use and maintenance of a fog cannon machine is crucial to ensure its efficiency and prolong its service life. By following the above guidelines, you can maximize the performance of your fog cannon machine while ensuring the safety of the operation process.
