For use in Dusty Areas of Mines Dust Cannon Fog is Equipped with Explosion-proof ― $760 CE

Zhenton fog cannons have a long range and can suppress dust by producing a column of mist that leaves the cannon at high speed and that can reach a range of 50 meters.

Calm range：50M Color：red Rotation angle：0-340

Inquiry Online Chat
[email protected]+8613907311223
Share With:

Youtube Facebook Instagram Twitter

Home / Goods

Product description:

Construction sites, urban demolition sites, mining areas, cement plants, thermal power plants, open-air blasting, heavy dust areas, wharf industrial dust removal, agriculture, landscaping, etc. Airports, expressways, stations, public places, sports venues, hot venues, etc. Dust reduction, moisturizing, cooling and disinfection.


For use in Dusty Areas of Mines Dust Cannon Fog is Equipped with Explosion-proof Switchboards and Explosion-proof Warning Lights

According to the principle of air delivery, the fog cannon uses high pressure pump and micro atomizing nozzle to
atomized water, the water mist was sent to the far distance by the fan air volume and wind pressure, and the coverage area of the water mist is larger with the help of the rotary mechanism.

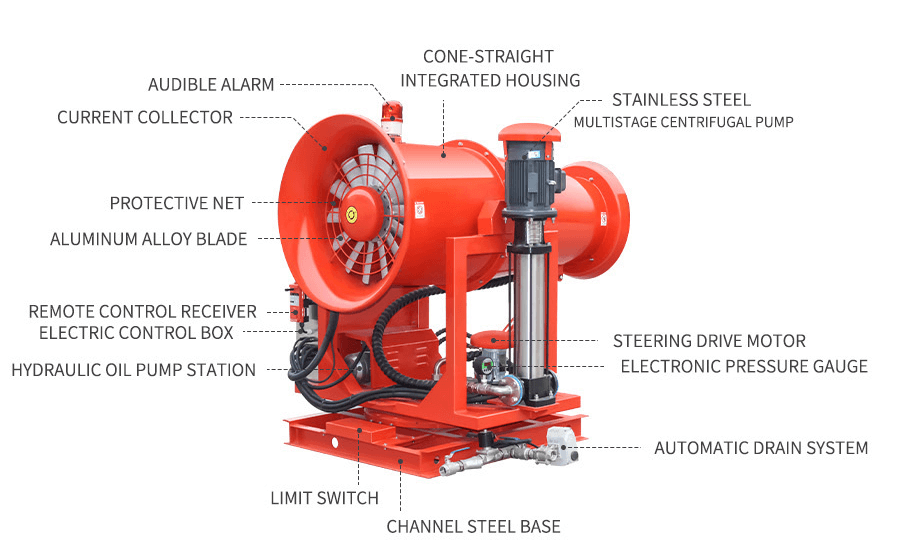

FEATURES AT A GLANCE
Baking paint finishing process
High strength slewing support
Local, remote control, PLC automatic control
Stainless steel multistage centrifugal pump
Industrial remote control
Stainless steel water ring and nozzle
Motor overload, under-voltage and default phase protection function


MODEl Static wind
range (m) 		Fan power
(Kw) 		Pump power
(Kw) 		Total power
(Kw) 		Pitch angle Rotation angle sprinkler Noise at 20
meters (dB) 		Weight(kg)
Split bax Standard certer nozzle
ZT-20 20~25 1.5 1.1 ≤3 -5~35° -5~40° 0~350° Single water ring 12 11 ≤60 260
ZT-30 25~35 2.2 1.5 ≤5 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 290
ZT-35 35~40 3 2.2 ≤6 -5~35° -5~40° 0~350° Single water ring 12 11 ≤65 330
ZT-40 40~50 7.5 3 ≤13 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 440
ZT-50 55~60 11 3 ≤16 -5~35° -5~40° 0~350° Single water ring 24 15 ≤68 530
ZT-60 60~70 15 4 ≤21 -5~35° -5~40° 0~350° Single water ring 30 15 ≤75 640
ZT-70 70~80 22 5.5 ≤30 -5~35° -5~40° 0~350° Single water ring 36 31 ≤75 850
ZT-80 75~85 30 5.5 ≤37 -5~35° -5~40° 0~350° Single water ring 46 31 ≤75 960
ZT-90 80~90 37 7.5 ≤46 -5~35° -5~40° 0~350° Single water ring 70 31 ≤80 1580
ZT-100 90~100 45 7.5 ≤55 -5~45° -5~45° 0~350° Single water ring 70 31 ≤80 1610
ZT-110 100~110 55 11 ≤68 -5~45° 0~350° Single water ring 100 31 ≤80 1850
ZT-120 100~120 75 15 ≤92 -5~45° 0~350° Single water ring 110 31 ≤85 2350
ZT-130 110~140 75 18.5 ≤86 -5~45° 0~350° Single water ring 120 31 ≤90 2850
