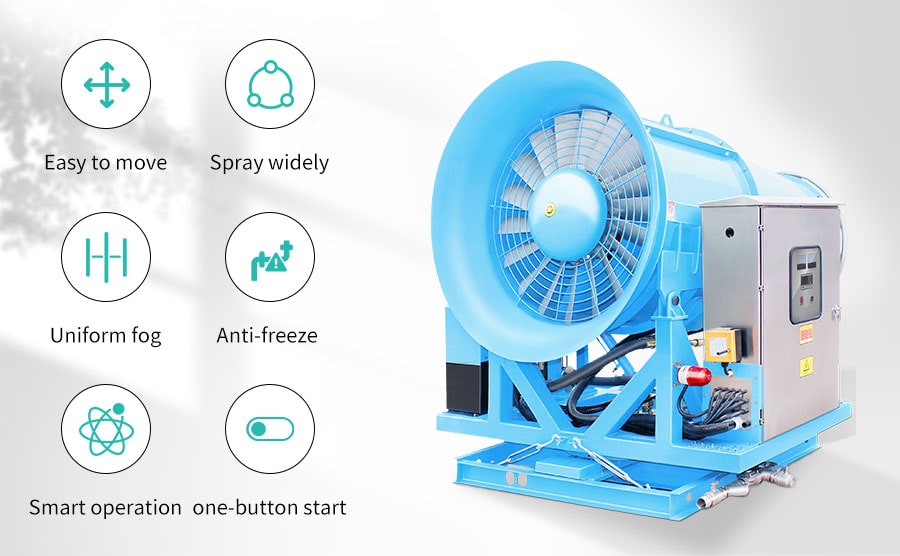

Zhenton fog cannons have a long range and can suppress dust by producing a column of mist that leaves the cannon at high speed and that can reach a range of 120 meters.
Calm range：120M Color：Customizable Rotation angle：0-340°
Zhenton fog cannons have a long reach and a long range and can suppress dust by producing a column of mist that leaves the 'cannon' at high speed and that can reach a range of 120 meters.When the mist or spray reaches the dust it can 'knock down' up to 90% of the dust. This type of dust suppression is best suited to building demolition, construction sites, quarries and mines, foundries, steel and slag facilities, waste transfer stations, and recycling plants.
Description
| MODEl |
Static wind range (m) |
Fan power (Kw) |
Pump power (Kw) |
Total power (Kw) |
Pitch angle | Rotation angle | sprinkler |
Noise at 20 meters (dB) |
Weight(kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Split | bax | Standard | certer nozzle | ||||||||
| ZT-20 | 20~25 | 1.5 | 1.1 | ≤3 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤60 | 260 |
| ZT-30 | 25~35 | 2.2 | 1.5 | ≤5 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤65 | 290 |
| ZT-35 | 35~40 | 3 | 2.2 | ≤6 | -5~35° | -5~40° | 0~350° | Single water ring 12 | 11 | ≤65 | 330 |
| ZT-40 | 40~50 | 7.5 | 3 | ≤13 | -5~35° | -5~40° | 0~350° | Single water ring 24 | 15 | ≤68 | 440 |
| ZT-50 | 55~60 | 11 | 3 | ≤16 | -5~35° | -5~40° | 0~350° | Single water ring 24 | 15 | ≤68 | 530 |
| ZT-60 | 60~70 | 15 | 4 | ≤21 | -5~35° | -5~40° | 0~350° | Single water ring 30 | 15 | ≤75 | 640 |
| ZT-70 | 70~80 | 22 | 5.5 | ≤30 | -5~35° | -5~40° | 0~350° | Single water ring 36 | 31 | ≤75 | 850 |
| ZT-80 | 75~85 | 30 | 5.5 | ≤37 | -5~35° | -5~40° | 0~350° | Single water ring 46 | 31 | ≤75 | 960 |
| ZT-90 | 80~90 | 37 | 7.5 | ≤46 | -5~35° | -5~40° | 0~350° | Single water ring 70 | 31 | ≤80 | 1580 |
| ZT-100 | 90~100 | 45 | 7.5 | ≤55 | -5~45° | -5~45° | 0~350° | Single water ring 70 | 31 | ≤80 | 1610 |
| ZT-110 | 100~110 | 55 | 11 | ≤68 | -5~45° | 0~350° | Single water ring 100 | 31 | ≤80 | 1850 | |
| ZT-120 | 100~120 | 75 | 15 | ≤92 | -5~45° | 0~350° | Single water ring 110 | 31 | ≤85 | 2350 | |
| ZT-130 | 110~140 | 75 | 18.5 | ≤86 | -5~45° | 0~350° | Single water ring 120 | 31 | ≤90 | 2850 | |
